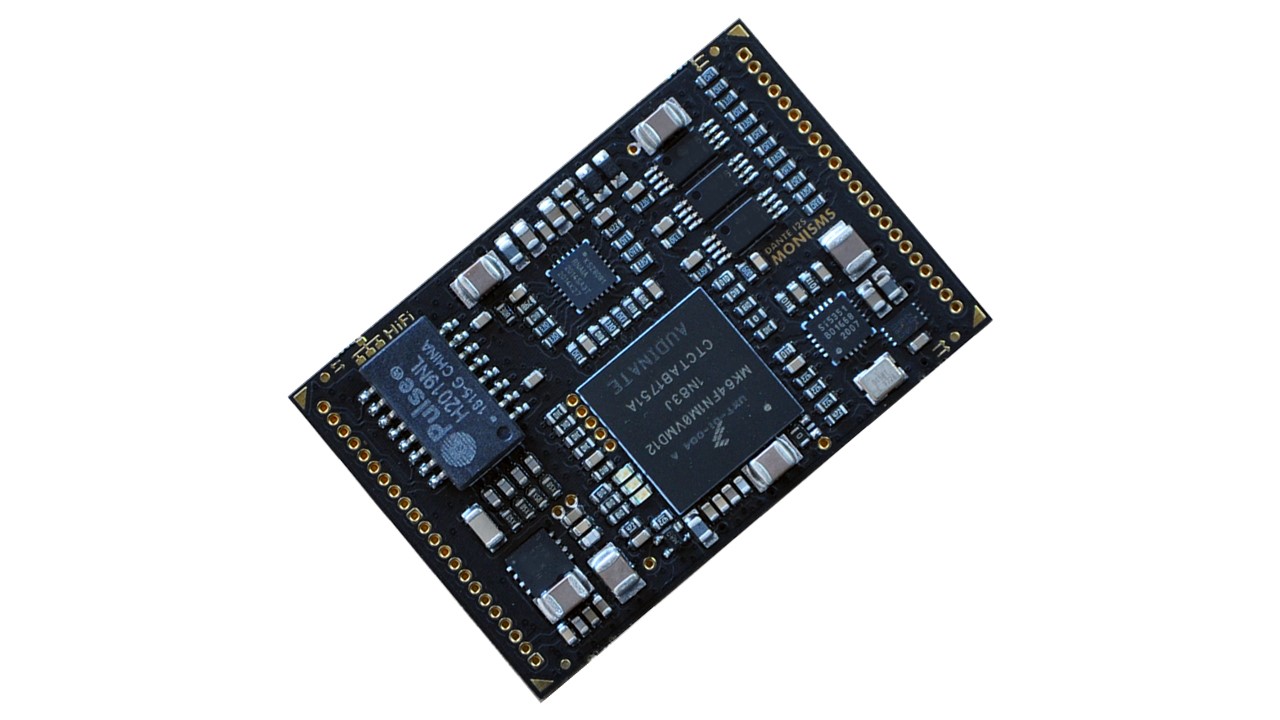

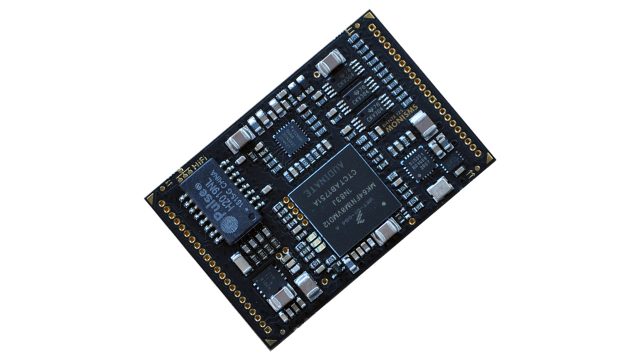

MNS-DANTE-I2S-TR-XX-1P DANTE I2S Audio Transmitter / Receiver Module

Product Description

There are few external components and easy to apply. Serial audio interfacing with I2S allows direct connection to a wide variety of audio components [e.g. powered speakers, microphones, ADC, DAC, DSP, Class-D amps, etc].

Supply voltage: Single +5V [Voltage Range: 4.5V to 5.5V] Power Supply. [Accept 3.3V customization].
Operation Current: 150mA

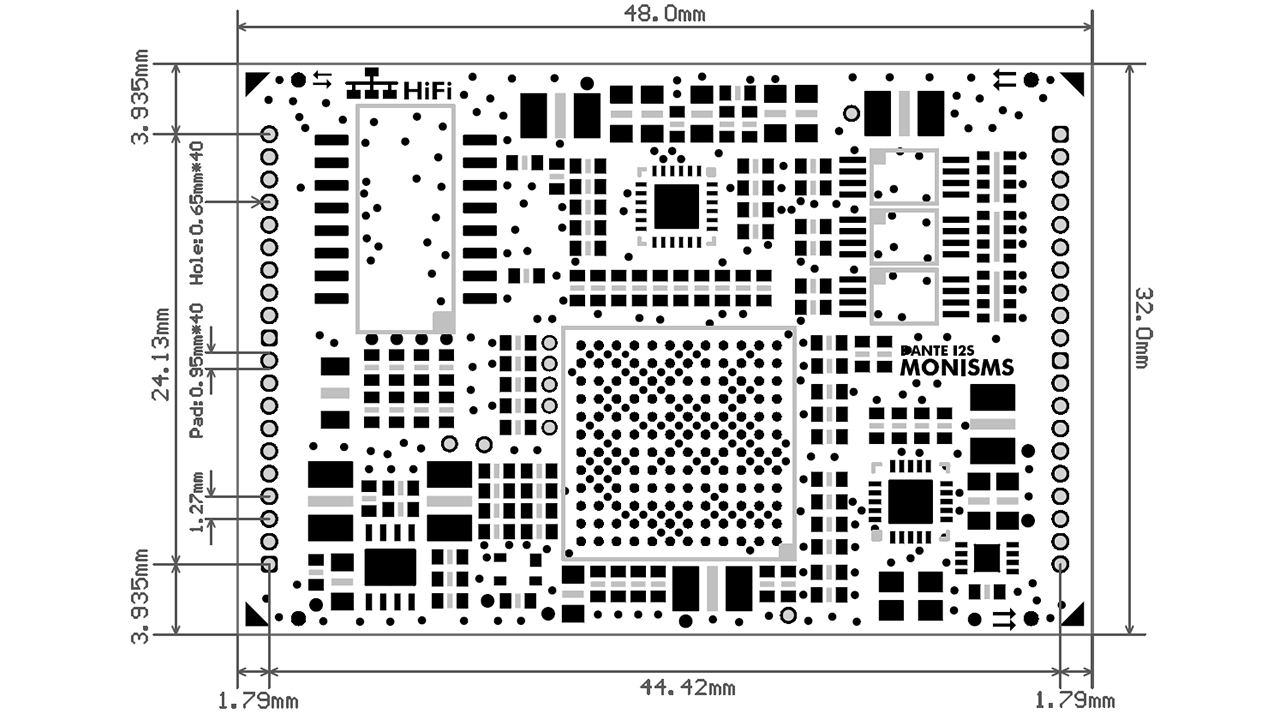

PCBA size: 32*48mm
Specified Temperature Range: -25 ~ +65℃

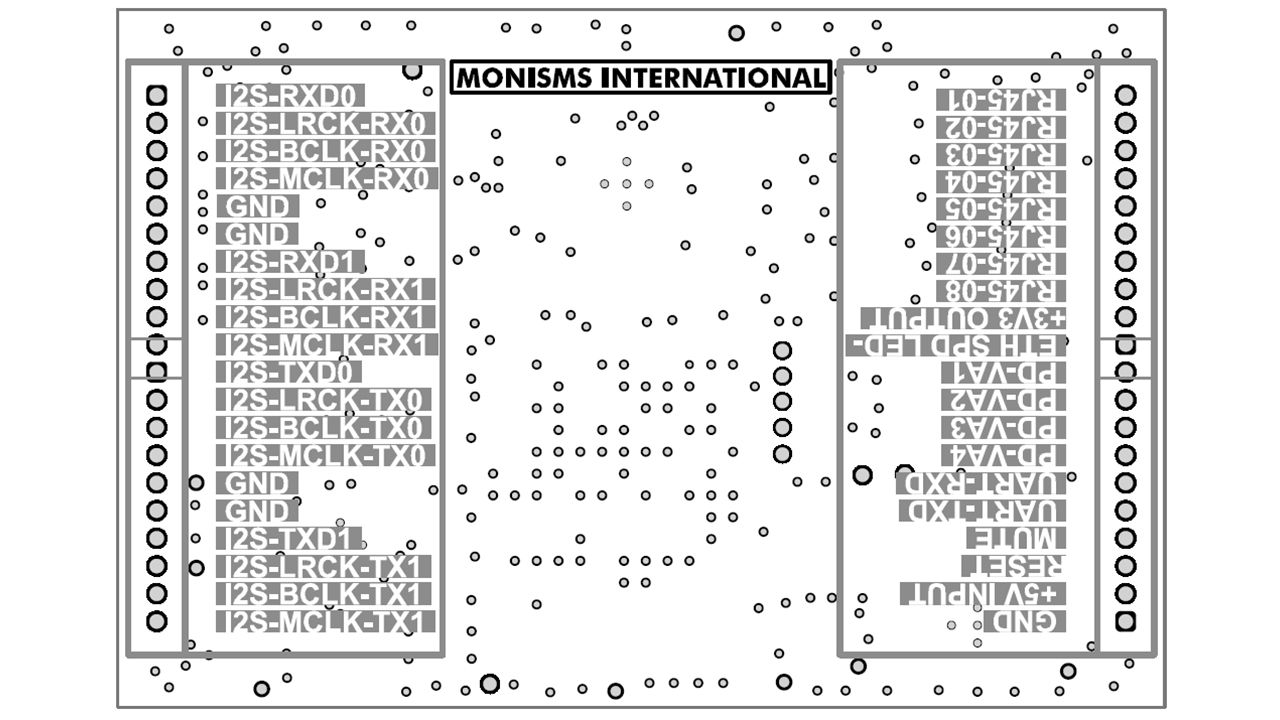

Audio Interface: I2S digital audio format [Master mode].
Control Interfaces: UART  [Standard UDP Protocol].
Network Interface: 1RJ45, Standard 100Mbps Ethernet [Reserved POE port].
Build-in LDO, LAN Transformers, Exact CMOS Clock, I2S Clock Buffer, Using 6-layers 2 oz copper [70 um Copper thickness] PCB design, the system is more reliable.

MNS-UXT-002 series：
[Model:MNS-DANTE-I2S-TR-11-1P]: For networked audio transmitter / receiver products requiring 1x1 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.
[Model:MNS-DANTE-I2S-TR-22-1P]: For networked audio transmitter / receiver products requiring 2x2 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.
[Model:MNS-DANTE-I2S-T-02-1P]: For networked audio transmitter products requiring 2 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.
[Model:MNS-DANTE-I2S-R-02-1P]: For networked audio receiver products requiring 2 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.
[Model:MNS-DANTE-I2S-T-01-1P]: For networked audio transmitter products requiring 1 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.
[Model:MNS-DANTE-I2S-R-01-1P]: For networked audio receiver products requiring 1 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.

MNS-UXT-004 series：
[Model:MNS-DANTE-I2S-TR-44-1P]: For networked audio transmitter / receiver products requiring 4x4 channels at a sample rates of 44.1 and 48kHz [16, 24 or 32-bit].
[Model:MNS-DANTE-I2S-T-04-1P]: For networked audio transmitter products requiring 4 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.
[Model:MNS-DANTE-I2S-R-04-1P]: For networked audio receiver products requiring 4 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.

Create a unique selling proposition and differentiate your product with rapid and flexible customization. MONISMS AOIP solutions are customizable in all areas including hardware, firmware, software and user interfaces through product development kits allowing you to create a unique selling proposition for your customers.
Quickly give your products the freedom and power to perform across markets with our embedded live audio networking DANTE/AES67 modules, chips and software solutions.
we can provided Dante Audio PCBA design ( Supply professional high-quality ADC, DAC, DSP, AMP, Speaker and Microphone) , Accept OEM/ODM.
